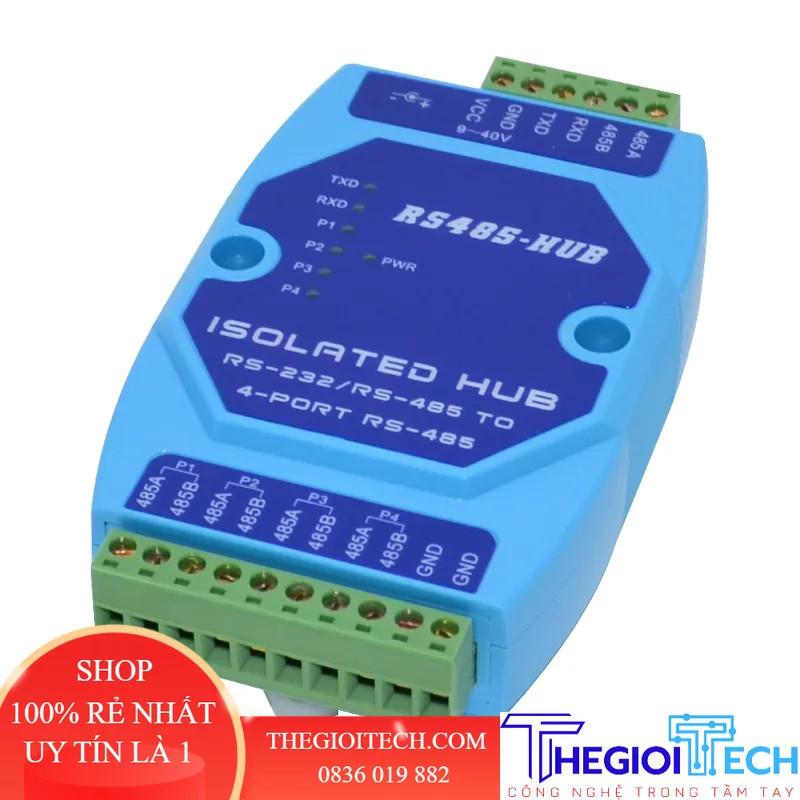

Thiết bị chia sẻ Hub 4CH RS485 485 Bộ chia 1 vào 4 ra Cách ly quang điện cấp công nghiệp - with RS232 Y adaptor - 21523 _{Yêu thích}

Demo Board Type:ARM
Certification:CE
Origin:CN(Origin)
Model Number:4-channel RS485 Hub Sharing Device 485 Splitter
Automatically send and receive data:RS-485 two-wire communication
Input interface:1 way RS-485 interface
Output interface:8-channel RS-485 interface
Communication rate:300BPS-115.2KBPS (adaptive)
Working power supply:dc9-40V500ma
Load capacity:RS485 can connect 256 devices per interface
Communication distance:3000 meters (per interface)
1 in 4 out Industrial Grade Optical Isolation 4-channel RS485 Hub Sharing Device 485 Splitter 485hub
More signal acquisition modules:
Description:
JPX-6041 is an RS-485 bus splitter hub (HUB) designed for industrial automation communication, which solves the RS-485 bus star structure networking and solves the RS-485 large system requirements in complex electromagnetic field environment. Support The transmission rate is up to 115.2kbps, the RS-485 interface uses optical isolation technology, 600W lightning surge protection circuit, provides 2500V isolation voltage can effectively buckle lightning and ESD protection. The discriminating circuit used in RS-485 working mode can automatically Perceive the direction of data flow, and automatically switch the enable control circuit to easily solve the RS-485 transceiving conversion delay problem. The RS-485 interface transmission distance is greater than 3000 meters and the performance is stable. Widely used in highway toll collection systems, road monitoring systems and power collection systems, it is a data interface conversion product with excellent performance and excellent price.
Features:
*Built-in photoelectric isolator and 600W surge protection circuit
It can provide 2500V isolation voltage, which can effectively suppress lightning and ESD, and can effectively prevent lightning strikes and common ground interference.
* Built-in CPU processor automatically senses channel data flow direction
Automatically determine the channel status, automatically switch the enable control circuit, and easily solve the problem of RS-485 transceiving conversion
*Using external power supply to provide wide voltage input
Powered by an external power supply switching power supply, safe and reliable, suitable for outdoor use, providing DC9-40V wide voltage input
4-channel RS-485 signal output
Support 1 way RS-232/485 to 4 way RS-485 (1 turn 4, 4 turn 1)
High performance transient voltage suppression tube
Built-in DC-DC power isolation module
Communication uses high speed optocoupler isolation protection
Baud rate adaptation
Asynchronous half-duplex, two-way communication
9-40VDC wide voltage input
Easy to install rails
Product parameters:
* Compatible with RS-232, RS-485TIA/EIA standards
* Automatically send and receive data: RS232 three-wire (TXd.rxd.gnD) communication
*Input interface: 1 way RS-232/RS-485 interface
* Output interface: 4-channel RS-485 interface
* Communication rate: 300bPS-115.2KBPS (adaptive)
*Working power supply: DC9-40V500mA
*Load capacity: can conn
