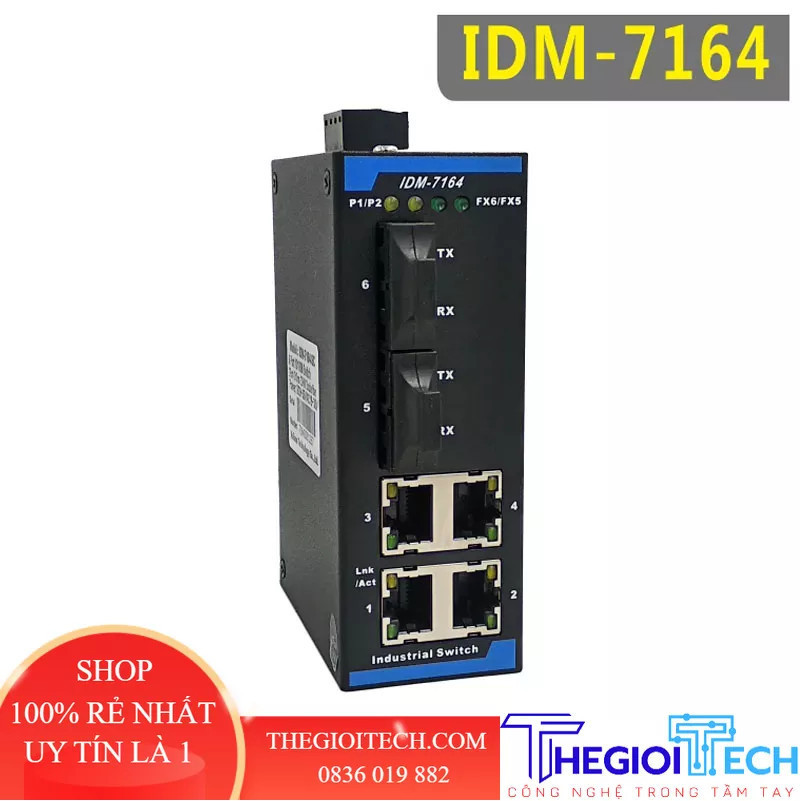

IDM-7164 6 cổng Công tắc 100M công nghiệp 2Optical 4Electric Ethernet Switch Din Rail - IDM 7164SC - 21894 _{Yêu thích}

2FX+4FE Ethernet Swtich
Model: IDM-7164
4-Port 10/100BaseT(X) (RJ45 connector)
2-Port 100Base-FX fiber port
AC18~30V or DC9~36V Double redundant input
Product description: The IDM-7164 is entry-level industrial 6-Port (2-Port fiber and 4-Port 10/100Mbps RJ-45) Ethernet switch
Product introduction

The IDM-7164 is entry-level industrial 6-Port (2-Port fiber and 4-Port 10/100Mbps RJ-45) Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports.

The IDM-7164 switch is rated to operate at temperatures ranging from -20 to70 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, AC24V or DC24V power supply, LED indicators make the plug-and-play IDM-7164 switches easy to use and reliable.

Product features

2-Port 100Base-FX fiber port

4-Port 10/100BaseT(X) RJ45 connector

IEEE802.3/802.3u/802.3x support

10/100Mbps auto negotiation

Supports full-duplex or half-duplex negotiation

AC18~30V or DC9~36V Double redundant input

DIN-rail mounting ability

Industrial Ethernet standard

Product specification

Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X) & 100Base-FX

RJ45 Port: 4-Ports 10/100Base-T(X), full/half-duplex, auto MDI/MDI-X

FiberPort: 2-Port 100Base-FX (with optional SC, ST, FC)

Bandwidth: 1.6G

MAC table size: 2 K

LED indication: PWR1, PWR2, FX port Link/Act, RJ-45 port Link/Act

Fiber mode: Multi-mode 50/125, 62.5/125μm

Single-mode 9/125, 10/125μm

Fiber Trans distance: Multi-mode:2 KmSingle-mode:20 Km

Voltage input: AC18~30V or DC9~36V Double redundant input

120mA @ 24V (Max)

Installation: 35mmDIN-Rail

Dimension (W x H x D): 115×50×78 (mm)

Operating temperature: -20 ℃～70℃

Storage temperature: -40 ℃～85 ℃

Relative humidity: 5～95% (non-condensing)

Interface definition


Power

VS+: Power positive, VS-: Power negative

Ethernet

1,2,3,4

Fiber

5,6

LED

PWR1, PWR2, P1~P4, FX5 Link/Act, FX6 Link/Act

Model definition

IDM-7164-SC Double fiber SC interface, single mode fiber and multimode fiber

IDM-7164-FC Double fiber FC interface, single mode fiber and multimode fiber

IDM-7164-ST Double fiber ST interface, single mode fiber and multimode fiber

IDM-7164-SC1 Single fiber SC interface, only using single-mode fiber

IDM-7164-FC1 Single fiber FC interface, only using single-mode fiber

IDM-7164-ST1 Single fiber ST interface, only using single-mode fiber
=============================================
Thông số kỹ thuật tùy theo phiên bản khách hàng lựa chọn, Có Code chương trình mẫu để KH tham khảo
