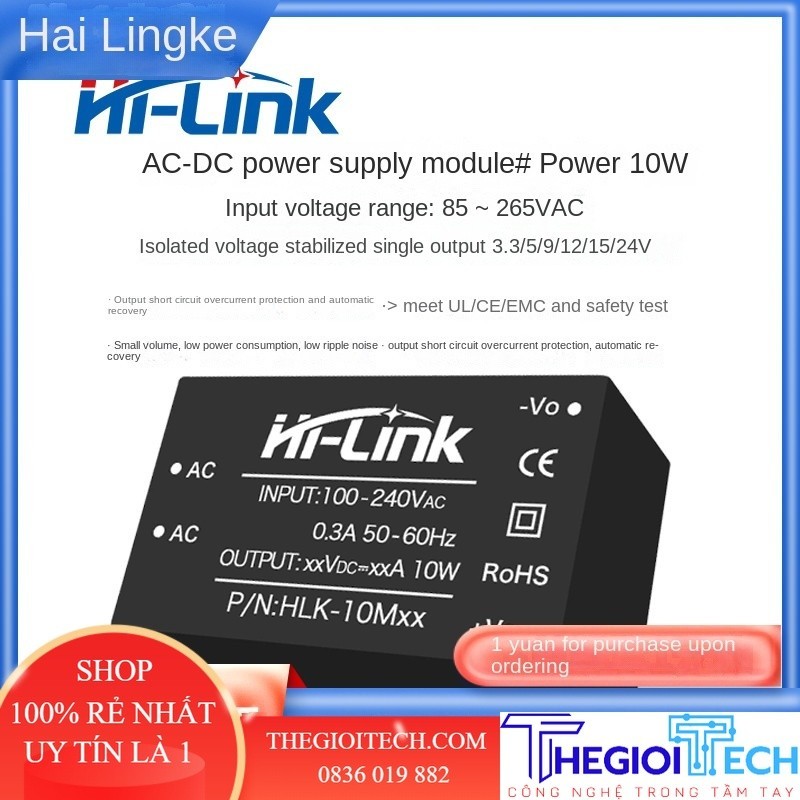

HLK-10M ACDC Cách Ly Bước Xuống Chuyển Mạch Điện Mô-đun 220V Sang 10m03/05/09/12/24v10w - HLK-10M15 - 21168 _{Yêu thích}

Product Features

Wide range input 85-264VAC/70-350VDC

Input and output isolation voltage 3000VAC

No-load power consumption ≤0.1W

Working temperature range:-25℃

Fully enclosed plastic housing, in keeping with UL94V-0 level

High output short circuit and over-current protection and self recovery glue potting, dustproof, moisture-proof, shockproof, flame-retardant

Meet UL/CE/EMC and safety testing requirements

Using high-quality enviromentally friendly waterproof thermal conductive

Can be suing in medical, industrial control, electric power, instrumentation, communication, railway and other fields



Environment Condition

Working Temerature -25—+60 ℃

Storage temperature -40—+80 ℃

Relative humidity 5—95 %

Thermal methods Natural cooling

Atmospheric pressure 80—106 Kpa

Altitude ≤2000 m

Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

Meets requirements for secondary road transportation



Input Features( test at room temperature)

Rated input voltage 100-240Vac

Input vlotage range 85-264VAC/70-350VDC

The maximum input voltage 270VAC

The maximum input CURRENT ≤0.3A

Input inrush current ≤34A

Input low start ≤50mS

External fuse recommended 1A/250Vac or 10Ω wire wound resistance, Slow blow



Output Features

Full-load rated output voltage 5.0±0.2%

Load regulation ±0.5%

Switching on/off overshoot amplitude (Rated input voltage, output plus10% load)≤5%Vo

Output over-current protection Output maximum load 110-130% A

Ripple/Noise ≤70mVp-p(Typ:50)



Input Voltage & Load Characteristics


Working Environment Temperture & Load Characteristics






Typical Application Circuit




Safety Characteristics

Meet UL/CE requirements

(UL/CE certification requires customers to self-certify)

Safe compatible with battery

The input end design adopts UL certification 0.5A insurance

The fire ration of PCB board is 94-V0

Safety standards comply with UL1012,EN60950,UL60950

Insulation resistance I/P-O/P＞100M 0hms/500Vdc 25℃ 70%RH

Conforms to radiation EN55011, EN55022(CISPR22)

Electrostatic discharge IEC/EN 61000-4--2 level 4 8KV/15KV



Temperature rise safety design

Under normal conditons, the maximum temperature rise of the inner surface of the power supply capacitor,

main converter, etc. does not exceed 90℃，and the maximum temperature rise of the shell surface does not exceed 60℃



Dimension and Weight
Thương hiệu: HI-LINK
Model: HLK-10M03
Phân loại màu: HLK-10M03,HLK-10M05,HLK-10M09,HLK-10M12,HLK-10M15,HLK-10M24
======
