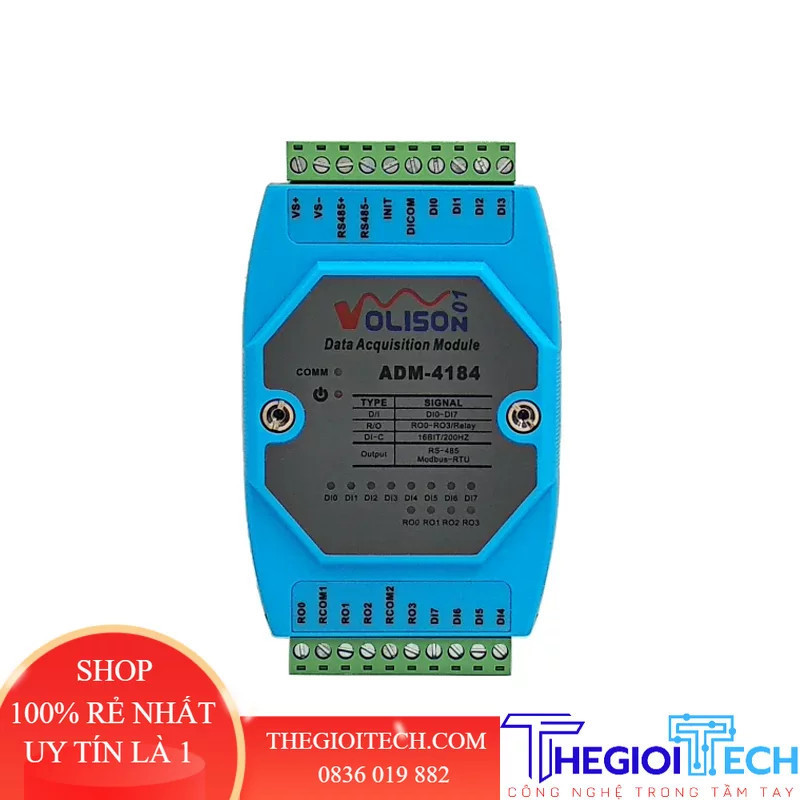

8DI/4RO Digital Input and Output Module

ADM-4184

Product introduction

ADM-4184 is a 8 Channel digital input and 4 Channel (normally open) relay output

module, which is used in industrial field signal acquisition, monitoring and control.

Support 8 channel isolation digital input and 4 channel A-Type relay output. RS-485

communication interface, support the MODBUS RTU protocol. It is can connect

configuration software, PLC, DCS, industrial control touch screen.


Product specification

Digital input

1. Input channel: 8 Channel dry contact or level signal

2. Input polarity: co - negative or co - positive (automatic adaptation)

3. Input range: high level (1):7.5V - 30V, low level (0): 0V - 1V

4. Sampling rate: 1000Hz

5. Isolation voltage: 1500V

6. Input counter: 16 bit (0~65535), input frequency less than 200HZ


Digital output

1. Output channel: 4 Channel A-Type (normally open) relay output

2. Load voltage: 0-250VAC or 0-30VDC

3. Load current: 3A


Communication interface

1. Communication protocol: MODBUS-RTU

2. Interface type: RS-485 interface

3. Interface protection: 15KV ESD protection, 1500V isolation protection

4. Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200

5. Parity：No, even, odd

6. Default: 9600, N, 8, 1 (Modifiable)


System parameter

1. Module size: 124.9mm x 71.5mm x 34.1mm

2. Installation: 35mm DIN-Rail installation

3. Environment: temperature: -20~70 C humidity: 0-95%, not condensing

4. Power supply: DC9~30V is less than 3W


LED directive definition

1. POWER: power status indication, "bright" power supply is normal

2. COMM: RS-485 communication indication, "flash" is sending and receiving data

3. DI0~DI7: digital input indication, "bright" digital input is 1

4. RO0~RO3: relay output indication, "bright" relay RO and COM closure


Using the default communication parameters

When you forget module communication (ID, baud rate, parity bit), the INIT and

VS- pins are short circuited, module electrifying, The communication parameters of the

module are (9600, N, 8, 1), ID is 1.

INIT and VS- pin is disconnected, module using parameters set by the user, default

settings for the module (9600, N, 8, 1), ID is 1.


Interface definition

Pins Symbol Definition Pins Symbol Definition

1 VS+ Power input + 11 DI4 Digital input 4

2 VS- Power input - 12 DI5 Digital input 5

3 RS485+ RS-485(A) 13 DI6 Digital input 6

4 RS485- RS-485(B) 14 DI7 Digital input 7

5 INIT Default settings 15 RO3 Relay contact 3

6 DICOM DI0-DI7 COM 16 RCOM2 RO2-RO3 COM

7 DI0 Digital input 0 17 RO2 Relay contact 2

8 DI
