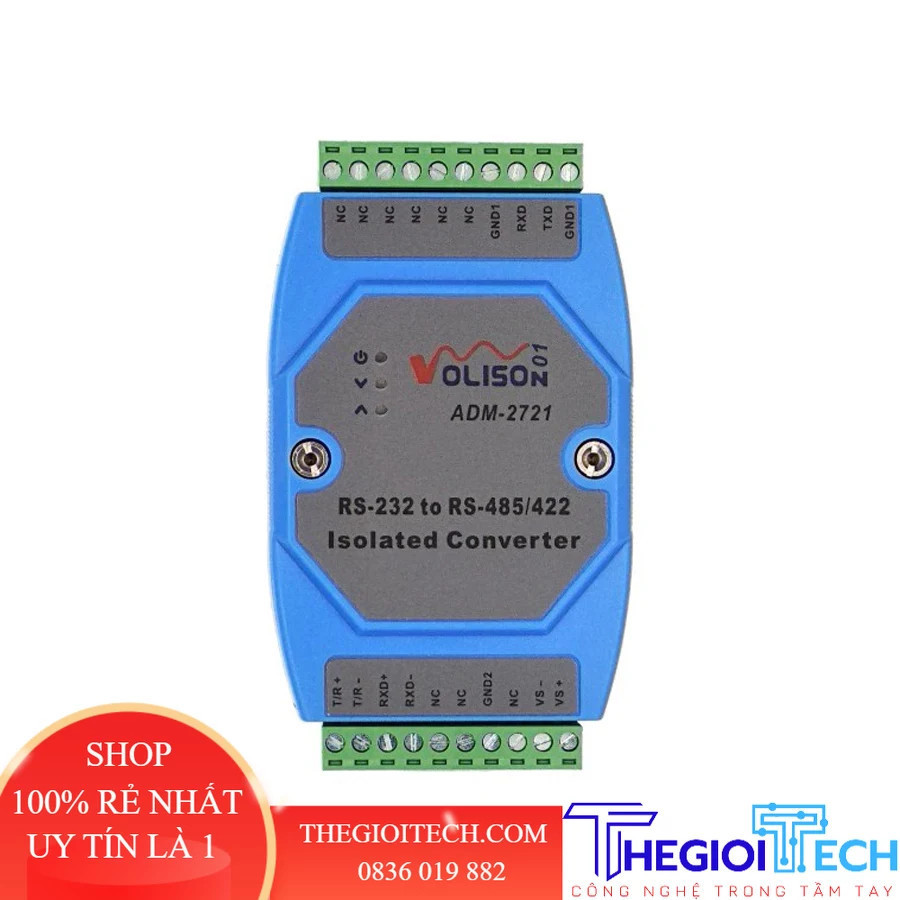

ADM-2721 Bộ chuyển đổi cách ly quang học DIN-Rail 24V RS232 sang RS422/485 Cấp công nghiệp - kit4 - 21937 _{Yêu thích}

Description
Report Item


1. Converter + DB9 (female) wire
2. Converter + DB9 (male) wire
3. Converter + DB9 (female) wire + power supply
4. Converter + DB9 (male) cable + power supply

Photoelectric isolation industrial grade RS-232 to RS-485 / 422 converter
RS-232, RS-485 / 422, three terminal isolation of power supply

product description

ADM-2721 is a product designed to solve the problem of weak signal and easy interference when the RS-485 / RS-422 signal is transmitted over an extended distance. Can extend the communication distance of RS-485 / RS-422 bus, increase the number of devices in RS-485 / RS-422 network, support transmission rate group up to 115.2KBPS, the product has built-in three-terminal isolation, RS-485 / RS- The 422 and power are isolated from each other. The RS-485 interface uses photoelectric isolation technology. The 600W lightning protection circuit provides a 1500V isolation voltage, which can effectively suppress lightning and ESD protection. The discrimination circuit used in the RS-485 working mode can automatically sense the direction of the data flow, and the automatic switching enables the control circuit to easily solve the RS-485 transmission and reception conversion delay problem. The RS-485 interface has a transmission distance of more than 1000 meters and stable performance. Widely used in highway toll system, road monitoring system and power collection system, it is a data interface conversion product with excellent performance and good price.

product information

Model: ADM-2721
Product name: Fully Isolated RS-485 / RS-422 Repeater
Communication rate: 300BPS-115KBPS
Working mode: asynchronous half-duplex or asynchronous full-duplex
Communication distance: 100 meters (1200BPS) can be connected to 24V power supply)
Transmission medium: twisted pair or shielded wire
Installation: 35mm DI rail installation

Interface introduction

Interface characteristics: compatible with RS-485 / RS-422 TIA / EIA standards
Electrical Interface
Input interface: 1 RS-485 / RS-422 interface, using industrial-grade wiring connector
Output interface: 1 RS-485 / RS-422 interface, using industrial-grade wiring connector
Protection level: Built-in three-terminal isolation, RS-485 / RS-422 and power supply at both ends are isolated from each other, RS-485 and RS-422 interface cables have 600W lightning surge protection, +/- 15KV electrostatic ESD protection; inside the interface is equipped Industrial-grade protective fuses can also protect the internal chip from lightning strikes if it is struck by lightning several times.
=============================================
